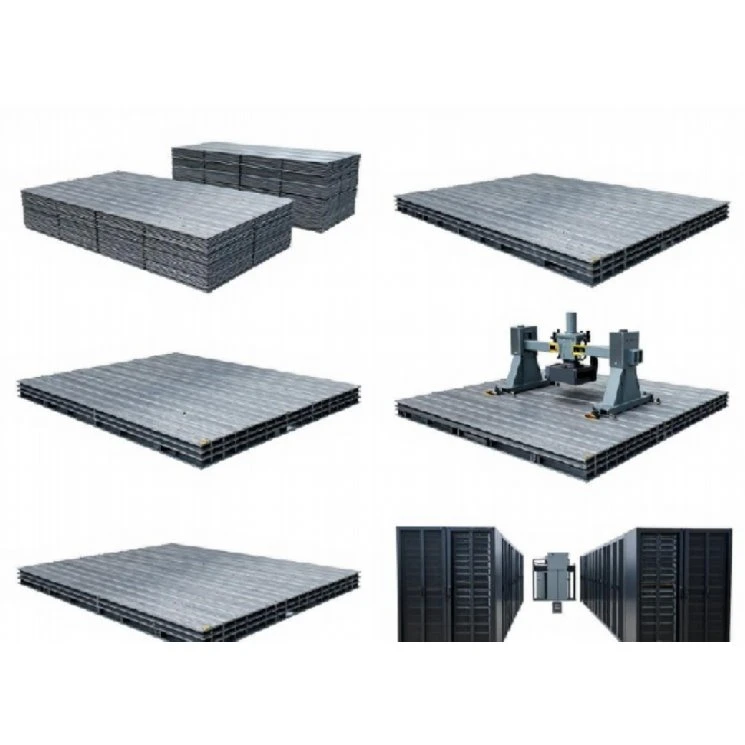

High-Load Raised Access Floor System
Iyo Fineco High-Load Raised Access Floor System inopa structural underfloor plenum management uye inorema-duty load support for mission-zvivakwa zvakakosha. Yakagadzirirwa nzvimbo dzekugara dzakakwirira-density server racks, power distribution units (PDUs), uye industrial control consoles, ino batanidza mapenera epamusoro-density core ane inotonhora-simbi yakamonerwa pedestals. Iyo inoburitsa yakajeka yepasi pevhu nzira yeHVAC, simba, uye cabling ichiramba yakaomesesa static uye inosimba mitoro profiles isina zvachose deformation.
Key Features
High-Density Structural Core:Inoshandisa high{{0}density cementitious particle board kana kuti{1}}steel welded shell construction to resist point{2}}load crushing.
Rigid Understructure Grid:Mabolted stringer uye pedestal assemblies anokiya mapaneru mundege yakaoma yakachinjika, achibvisa kuchinjika kwepashure pasi pemitoro inokunguruka.
Precision Height Adjustment:Heavy-yegeji tambo dzesimbi dzakaiswa shinda uye kukiya nzungu zvinoita kuti urori hurebe chaiwo (FFH) kubva pa150mm kusvika 2000mm.
Electrostatic Dissipation (ESD):Factory-yakashandiswa High-Pressure Laminate (HPL) kana conductive vinyl surface finishes inochengetedza pamusoro peresitorendi pakati pe1 × 10⁶ uye 1 × 10⁹ ohms.

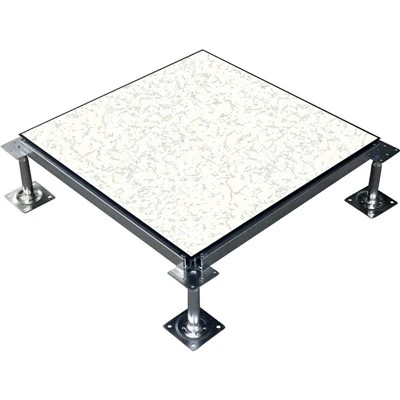

System Structure
Floor Panels:Anochinjika ma modular panels (kazhinji 600mm × 600mm) ane magetsi ekudzivirira-malalvanized kana epoxy-matehwe esimbi akavharidzirwa.
Pedestal Assembly:Inosanganisira base plate (min. 100cm²), vertical threaded stud (M18/M20), die-simbi yakakandwa musoro ine integrated stringer locating tabs, nelevel nut.
Stringers:Batanidza-kana mabhaudhi tubular machanera esimbi anobatanidza misoro yezvitsitsinho kuti agadzire grid yakasimba, achiwedzera kugadzikana uye yunifomu yekuremerwa.
Gaskets:Conductive PVC/rabha padding inonamira kune pedestal heads kubvisa acoustic vibration uye kudzivirira simbi-pa-metal friction.
Zvetekinoroji Zvinotsanangurwa & Muedzo Kusimbiswa
|
Parameter |
Specification Details |
Certified Standard / Test Method |
|
Panel Dimensions |
600 mm × 600 mm (Masaizi ega ega aripo) |
Kugadzira kushivirira: ± 0.2 mm |
|
Standard Panel Ukobvu |
30mm/35mm/40mm |
Dimensional verification pa ISO 9001 QC |
|
Core Materials |
Cementitious Particle Board / Calcium Sulfate / Welded Steel Shell |
Density: Yakakura kudarika kana yakaenzana ne1500 kg/m³ (Calcium Sulfate) |
|
Concentrated Load Capacity |
CISCA Grade 8 / Grade 10 (3.56 kN kusvika 4.45 kN) |
Wechitatu{{0}Bato Rakasimbiswa: SGS Test Report pafaira |
|
Ultimate Load Capacity |
Huru kupfuura kana kuenzana ne11.1 kN |
Yakaedzwa maererano neCISCA / EN 12825 maitiro |
|
Uniform Load Capacity |
15 kPa kusvika 22 kPa |
Maximum zvachose deflection <0.25 mm |
|
Finished Floor Height (FFH) |
150 mm kusvika 2000 mm |
Inochinjika kuburikidza neM18/M20 inorema-gauge simbi tsvimbo |
|
Surface Resistivity |
10⁶ kusvika 10⁹ ohms |
Yakaedzwa kuEOS/ESD S7.1 |
Seismic Performance
Yakagadzirirwa kuiswa munzvimbo dze seismic inoda kusimba kwechimiro chechokwadi.
Lateral Load Resistance:Inoshingirira mahorizontal shear forces kuburikidza-duty bolted stringer connections uye structural seismic gussets.
Sway Mitigation:Inosanganisa diagonal bracing machubhu akamisikidzwa kune subfloor substrate, inorambidza yakawandisa lateral kusimuka panguva yezviitiko zvekudengenyeka.
Dynamic Response:Yakagadzirwa kudzivirira kubviswa kwepaneru kubva pamisoro yezvitsitsinho panguva yekuchinja kwemaitiro.
Typical Applications
Hyperscale Data Centers:Inotsigira-density server racks, blade servers, uye heavy battery backup systems. (Kutumirwa Kuchangoburwa: 12,000 m² Tier III Data Center Facility, Frankfurt, Germany).
Colocation Zvivako:Inopa modular kuchinjika kune akawanda-mahoro evanoroja anoda kugadziridzwa nguva nenguva.
Industrial Control & SCADA Rooms:Dzimba dzinorema otomatiki consoles, magetsi switchgear, uye ekutarisa materminal. (Kutumirwa Kuchangopfuura: Nzvimbo Yemagetsi Grid Dispatch Control Center).
Dzimba dzekuchenesa & Semiconductor Labs:Inodzora kugadzirwa kwezvikamu uye inodzora-vhoriyamu yepasi ine conditioned air distribution (laminar airflow).
Installation & Customization
Subfloor Kugadzirira:Inoda ma slabs akachena, akaiswa kongiri akaiswa anti-dust concrete sealer.
Installation Tolerances:Yakaiswa uchishandisa laser leveling zviridzwa; vertical height tolerance restricted to ±1.5 mm across a 5-meter span.
Custom Cucuts: Factory or site-machined cable grommets, brush tiles, and directional airflow grates (perforation rates from 15% to 55%) integrated directly into the layout.
Maitiro & Hunhu
Yakagadzirwa mukuteerana nepasi rose bvunzo maprotocol:
CISCA (Ceiling & Interior Systems Construction Association):Performance specification yekuwana pasi.
EN 12825:Yakasimudzwa yekupinda pasi mwero (Yakakamurwa nekutyora mutoro uye kutsauka).
ASTM E84:Kupisa kwepamusoro maitiro (Flame Spread Index 0, Smoke Developed Index Yakaderera pane kana kuenzana ne25).
ISO 9001:Hunhu manejimendi masisitimu anotonga mbishi kutsvagisa, kutsika, welding, uye coating maitiro.
Kugadzira & Rutsigiro rweProjekiti
Zvishandiso zvekugadzira:Automated multi-steral stamping presses, robhoti MIG welding maseru, uye electrostatic poda coating mitsara.
Mu-Kuedza Mumba:Chikwata chega chega chekugadzira chinopinda chiratidzo chinoparadza{{0}kuyedzwa kwekuremerwa kwekumisikidza, kukunguruka, uye kwekupedzisira mitoro.
Rutsigiro rweInjiniya:Gadzirisa magadzirirwo eCAD, maverengero ekugovera, uye pa-pasaiti yeunyanzvi hwekutarisisa mapasuru kune akakura{1}}kutumirwa.
Mibvunzo Inowanzo bvunzwa
Q: Ndeipi yakanyanya kuomeswa mutoro weiyo system, uye inoedzwa sei?
A: Mapaneru edu-anorema anotsigira mitoro yakadzika kusvika ku4.45 kN (CISCA Grade 10) nekutsauka zvachose kweisingasviki 0.25 mm. Kuedza kunoshandisa 25 mm × 25 mm indenter tsoka panzvimbo isina kusimba yepanera (yepakati kumucheto kana kona) maererano neCISCA uye EN 12825 nhungamiro, zvichitsigirwa neane certified third{8}}mishumo yerabhoritari yebato.
Q: Iyo sisitimu inobata sei kutenderedza mitoro kubva kune inorema server racks panguva yekuisa?
A: Sisitimu iyi inoshandisa mabhaudhi stringer grid framework yakasanganiswa nepamusoro-density simenti kana ese-simbi ane welded panels. Iyi gadziriso inogovera dynamic rolling mitoro (yakayedzwa kusvika 4.5 kN rolling load ine 10,000 cycles) pane akawanda pedestals, kudzivirira localized panel kuparara kana stringer buckling.
Mubvunzo: Ndeupi musiyano uripo pakati pecalcium sulfate necementitious particle board cores pa-load applications?
A: Cementitious particle boards anopa simba rekutanga rekudzvanya uye rinoramba mwando zvakanakisa, zvichiita kuti adhure-kufambirana nemamiriro enzvimbo yedata. Calcium sulfate cores inopa hukuru hwekudzivirira moto (A1 isingabatike-inobvira), yakanyanya kusimba, yakasarudzika acoustic damping, uye yakakwirira yekupedzisira mitoro yemamiriro ekutakura zvakanyanya.
Mubvunzo: Iyi yakasimudzwa pasi system inogona kubatanidzwa nezviripo seismic zone zvinodiwa?
A: Hongu. KuSeismic Zones 3 ne4, tinopa-duty seismic pedestal heads, heavy gauge stringers, uye structural lateral bracing struts inosunga pedestal network yakananga kune structural slab, kudzivirira kumonyoroka uye kuparara kwechimiro.
Q: Ndedzipi nguva dzekutungamira uye zvirevo zvekurongedza zvekutumira mapurojekiti epasi rose?
A: Yakajairwa kugadzirwa kwekutungamira nguva dzinobva pamazuva makumi maviri kusvika makumi matatu zvichienderana nehuwandu uye tsika yekucheka zvinodiwa. Mapaneru akaturikidzana akamira paISPM 15{{4}kupisa kunopindirana-mapallets emapuranga akagadzirwa, mupendero-anodzivirirwa nefuro repamusoro-soro, akasungwa nemabhande esimbi, uye akaputirwa nefirimu rekusapinda mvura kuitira kufamba zvakanaka mugungwa.
